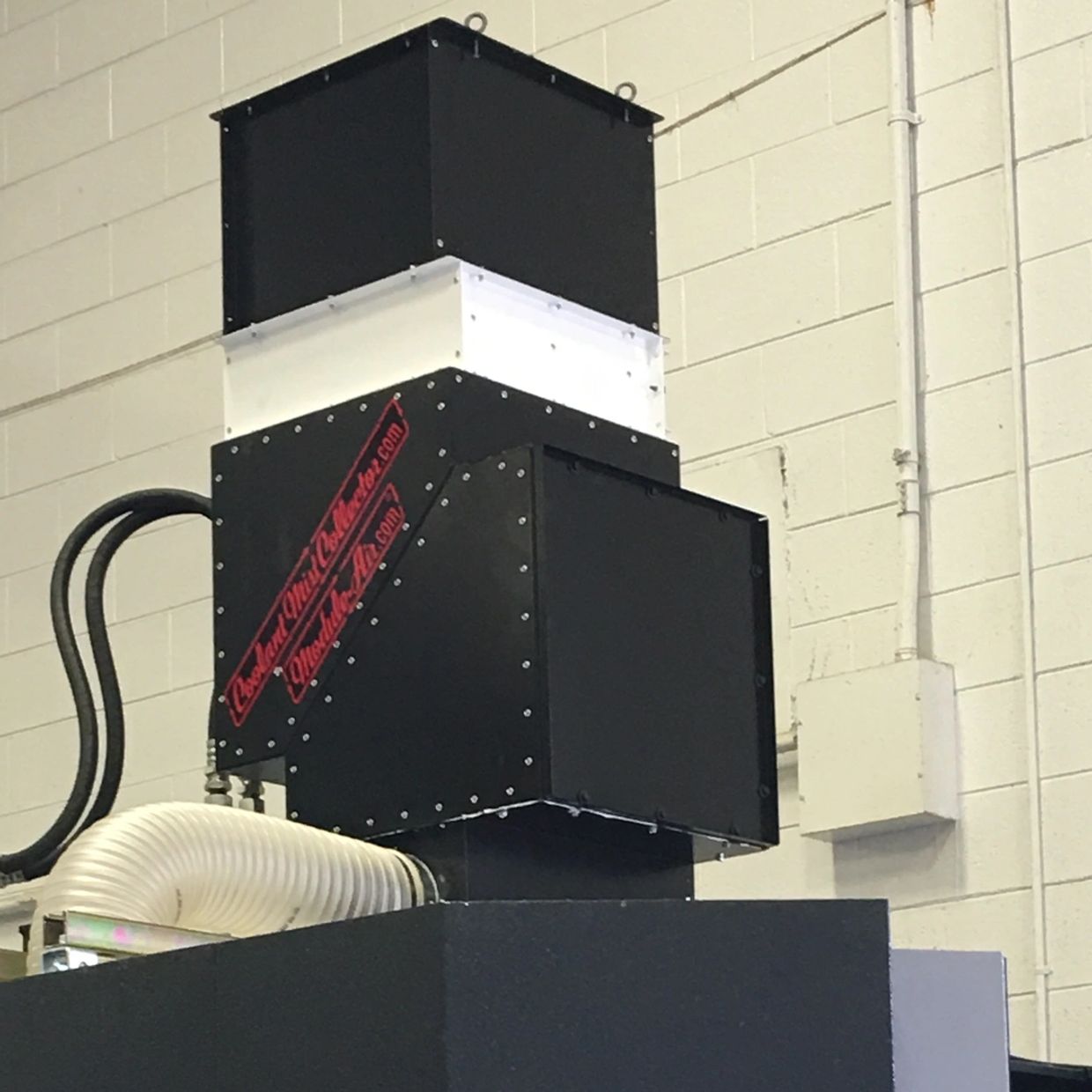

AF-03 OIL MIST COLLECTOR
AF-03 OIL MIST COLLECTOR SPECIFICATIONS
- Voltage: 110v or 220v (single phase)Motor: 3/4 HP
- premium grade AMPs-FLA: 115v (8.7-2.4), 220v (4.1-1.7)Drive: Direct drive
- CFM: 1000
- Weight: 120 lbs.
- Dimensions: 24” L x 19” W x 50” H
- Construction: Steel, Aluminum, Bolted, Riveted, Sealed,
- Finish: Powder Coated
- Applications: Collect Coolant Mist, Oil, Smoke, Toxic Gasses, and more!
- Db: 55
- Standard Features: Vertical or horizontal, direct mount, stands and other mounting and hanging kits are available.
- Units come standard with a coalescing filter, 10 cell 95% bag filter, and carbon filter
- HEPA filter and housing sold separately.
AF-03 OIL MIST REMOAL
THE 03, OUR SMALLER OIL MIST COLLECTOR HAS THE BEST PERFORMANCE SPECS IN THE WORLD, WITH ONLY 10 MINUTES OF MAINTENANCE REQUIRED EVERY 6 MONTHS. THESE UNITS CAN BE PUT ON STANDS, MOUNTED VERTICAL OR HORIZONTAL, WITH HOSES OR DIRECTLY MOUNTED TO MEET ANY APPLICATION. THE UNIT MAKES ALMOST NO NOISE AND IS RIDICULOUSLY EFFICIENT AND SELF CLEANING. PRECISION IN-HOUSE BALANCING OF THE FAN MEANS NO VIBRATION IS TRANSMITTED TO YOUR MACHINE.
