TRIPLE AF-07 MULTIPLE UNIT
TRIPLE AF-07 MULTIPLE UNIT
- Voltage: 110 OR 220v (single phase)Motors: 3 X 3/4 HP,
- USES 3 Premium grade AMPs-FLA: 115v (11.6 EACH MOTOR), 220v (4.5-5.1)Drive: Direct Drive
- CFM: 6000,
- Weight: 650 lbs.
- Dimensions: 34” L x 84” W x 61” H Construction: Steel, Aluminum, Bolted, Riveted, Sealed Finish: Powder Coated
- Applications: Collect Coolant Mist, Oil, Smoke, Toxic Gasses, and more!
- Db: 55
- Standard Features: Vertical or horizontal, direct mount, stands and other mounting and hanging kits available
- Units come standard with a coalescing filter, 10 cell 95% bag filter, and carbon filter
- HEPA filter and housing sold separately

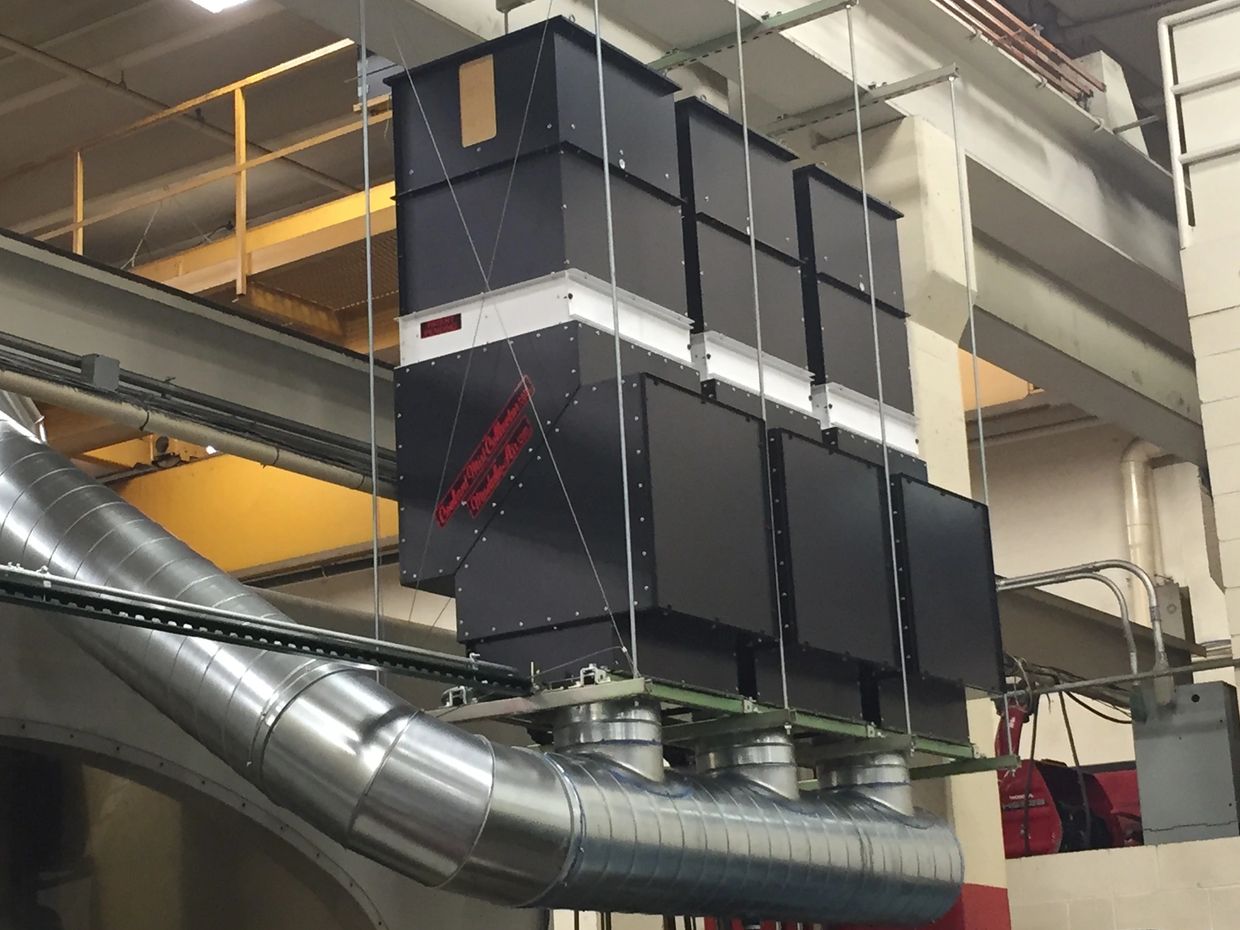

TRIPLE AF-07 MULTIPLE UNIT OIL MIST REMOVAL
THE 07, USES 3 OF OUR LARGER OIL MIST COLLECTOR HAS THE BEST PERFORMANCE SPECS IN THE WORLD, WITH ONLY 10 MINUTES OF MAINTENANCE REQUIRED EVERY 6 MONTHS. THESE UNITS CAN BE GANGED IN ANY MULTIPLE NEEDED FOR THE APPLICATION, PUT ON STANDS, MOUNTED VERTICAL OR HORIZONTAL, WITH HOSES OR DIRECTLY MOUNTED TO MEET ANY APPLICATION. THIS ALSO MAKES FOR REDUNDANCY IN THE SYSTEM. THE UNIT MAKES ALMOST NO NOISE AND IS RIDICULOUSLY EFFICIENT AND SELF CLEANING. WITH A CHANGE TO THE MEDIA USED INSIDE, THESE UNITS ARE ALSO USED WITH OUR CYCLONES TO PICKUP HEAVY GRIT OR DUST WITH 99.5% EFFICIENCY. PRECISION IN-HOUSE BALANCING OF THE FAN MEANS NO VIBRATION IS TRANSMITTED TO YOUR MACHINE.
